ADJUSTABLE FOCUS AUTOCOLLIMATORS

Type AKGV MD & AKGV MDD - Straight Viewing, Adjustable Focus with Micrometers

Autocollimators with straight viewing and adjustable focus setting and with either a mechanical double micrometer (AKGV MD) or a digital double micrometer  (AKGV MDD).


TYPE AKGV MD & AKG MDD

Notes on ordering:



When considering placing an order please note the following:

The autocollimators with adjustable focus setting and straight view is equipped with an eyepiece f=14.7 mm but can be equipped with eyepieces f=25 mm or f=10 mm on request.


Two reticles, one eyepiece and bulb illumination (6V/5W, without transformer) are included in the delivery. Please specify the reticle when ordering! If not specified otherwise, the autocollimators is adjusted to infinity at 546 nm wavelength. Adjustment to other distances or wavelengths is also possible on demand.


When ordering an autocollimators with digital double micrometer, please specify the unit of display of the digital gauges (arcsec, milliradians).
It is possible to specify the autocollimators either with the article no. or/and with the article description.

The nomenclature of the autocollimators with adjustable focus setting and straight viewing and mechanical (MD) or digital double micrometer (MDD) is shown in the right hand graphic.

Autocollimators Type AKG MD small-size-Aperture-MWO-Image-800x533.png

TYPE AKGV MD STRAIGHT VIEWING with ADJUSTABLE FOCUS

Small Size Aperture with Mechanical Double Micrometer

Type AKGV MD small ap.png

CA = Clear Aperture         FL = Focal Length         TE = Tube Extension         MR = Measurement Range

SD (scale division) = corresponding angle value in arcsec of one scale division of the micrometer screw

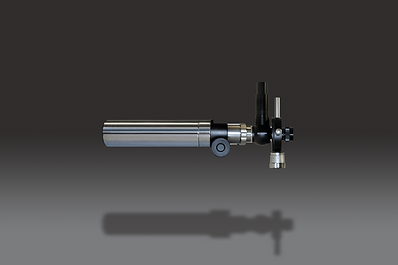

TYPE AKGV MD STRAIGHT VIEWING with ADJUSTABLE FOCUS

Mid-Size Aperture with Mechanical Double Micrometer

Type AKGV MD medium ap.png
Autocollimators Type AKGV MD mid-size-Aperture-MWO-Image-800x533.png

CA = Clear Aperture         FL = Focal Length         TE = Tube Extension         MR = Measurement Range

SD (scale division) = corresponding angle value in arcsec of one scale division of the micrometer screw

Autocollimators Type AKGV MD large-size-Aperture-MWO-Image-800x533.png

TYPE AKGV MD STRAIGHT VIEWING with ADJUSTABLE FOCUS

Large Size Apertures with Mechanical

Double Micrometer

AKGV MD large ap.png

CA = Clear Aperture         FL = Focal Length         TE = Tube Extension         MR = Measurement Range

SD (scale division) = corresponding angle value in arcsec of one scale division of the micrometer screw

TYPE AKGV MDD STRAIGHT VIEWING with ADJUSTABLE FOCUS

Small Size Aperture with Digital Double Micrometer

AKGV MDD small ap.png
Autocollimators Type AKGV MDD small-size-Aperture-MWO-Image-800x533.png

CA = Clear Aperture         FL = Focal Length         TE = Tube Extension         MR = Measurement Range

Autocollimators Type AKGV MDD mid-size-Aperture-MWO-Image-800x533.png

TYPE AKGV MDD STRAIGHT VIEWING with ADJUSTABLE FOCUS

Mid-Size Aperture with Digital Double Micrometer

Type AKGV MDD medium  ap.png

CA = Clear Aperture         FL = Focal Length         TE = Tube Extension         MR = Measurement Range

TYPE AKGV MDD STRAIGHT VIEWING with ADJUSTABLE FOCUS

Large Size Apertures with Digital

Double Micrometer

Type AKGV MDD large ap.png
Autocollimators Type AKGV MDD large-size-Aperture-MWO-Image-800x533.png

CA = Clear Aperture         FL = Focal Length         TE = Tube Extension         MR = Measurement Range
