FIXED FOCUS AUTOCOLLIMATORS

Type AKR SW- 90° Viewing

with Reticle Turret

An autocollimator with a reticle turret provides six selectable collimator reticles.  The reticle turret allows a quick change of reticles for different measurement tasks.


TYPE AKR 90° VIEWING

Notes on ordering:



When considering placing an order please note the following:

The autocollimator is equipped with an eyepiece f=14.7 mm but can be equipped with eyepieces f=25 mm or f=10 mm on request.  One eyepiece and up to six collimator reticles, one eyepiece and bulb illumination (6V/5W, without transformer) are included in the delivery. Please specify the reticle when ordering!


If not specified otherwise, the autocollimator is adjusted to infinity at 546 nm wavelength. Adjustment to other distances or wavelengths is also possible on demand.


In contrast to autocollimators with only one eyepiece and one collimator reticle the optical axis cannot be adjusted to its mechanical (tube) axis.
It is possible to specify the autocollimator either with the article no. or/and with the article description.

The nomenclature of the autocollimators with 90°-viewing with reticle turret is shown in the right hand graphic.

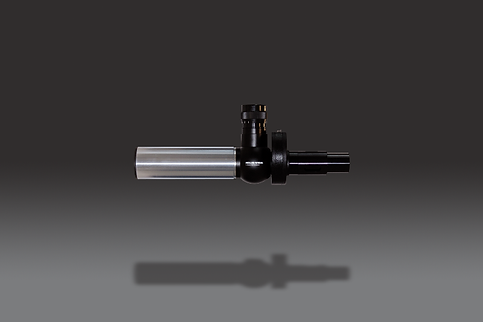

Autocollimators Type AKR SW small-size-Aperture-MWO-Image-800x533.png

TYPE AKR SW 90° VIEWING w/ RETICLE TURRET

Mid-Size Apertures

Type AKR SW 90 ret tur medium ap.png

*Compact design

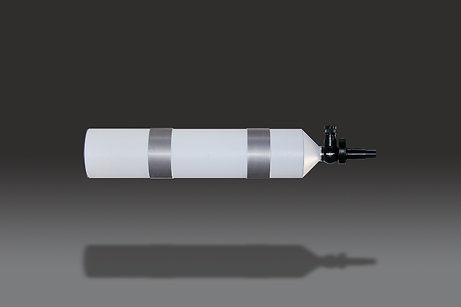

Autocollimators Type AKR SW large-size-Aperture-MWO-Image-800x533.png

TYPE AKR SW 90° VIEWING w/ RETICLE TURRET

Small Size Apertures

Type AKR SW 90 ret tur small ap.png
Autocollimators Type AKR SW mid-size-Aperture-MWO-Image-800x533.png

TYPE AKR SW 90° VIEWING w/ RETICLE TURRET

Large Size Apertures

Type AKR SW 90 ret tur large ap.png


Autocollimator Brochure

AKR 90° Viewing w/ Reticle Turret

Click PDF button to view, download and print.

pdf icon 3.png

Visual Autocollimators Introduction

pdf icon 3.png

Visual Autocollimators

90° Viewing

with Reticle Turret
