VISUAL OPTICAL INSTRUMENTS

Alignment Instruments

The  Möller-Wedel line of Alignment Instruments are very useful in a variety of settings and conducive to harsh outdoor environments.  The robust construction using stainless steel tubes ensures precision and accuracy across a range of conditions.

Vermont Photonics offers the complete line including an escape collimator as well as alignment telescopes and alignment autocollimators with straight viewing, 90° viewing and versions with a digital double micrometer.

Alignment Systems-Overview-MWO-Image-Slider-1000x500.png

ALIGNMENT INSTRUMENTS

Introduction



Alignment systems are precision instruments for aligning objects along an alignment line. Their special feature is that the optical axis is retained during focusing. This feature makes these instruments ideal for alignment of bores, bearings, optical structures, etc.


The instruments are also characterized by a large focusing range that extends from the end of the tube to infinity.

Depending on the measurement task three types of alignment instruments are available: Alignment collimator, alignment telescope and alignment autocollimator.

ALIGNMENT INSTRUMENTS

Functional Principle

The optical axis is coaxial with the receiving tube. This makes the use of the alignment telescope particularly easy when aligning bores, bearings, etc., since the reference line is already fixed in the reference bore or in the reference bearing when the alignment telescope is accurately mounted. The following figure shows the use of the alignment autocollimator for the alignment of bores. For this purpose, target marks are inserted into the drill holes and aligned in one line by means of the alignment telescope. At the same time, the targets can also serve as autocollimation mirror, so that the axes of drill holes can be aligned parallel when using an alignment autocollimator.


FF = Alignment Telescope  T = Target  LOS = Line of Sight  ∆s = Deviation from Line of Sight


FAKG = Alignment Autocollimator (Straight Viewing)  T = Target  LOS = Line of Sight

ALIGNMENT INSTRUMENTS

Technical Data

Alignment Telescope tech Data.png

*The accuracy of the line of sight denotes the deviation to a straight line measured in the image plane.

RETICLE IMAGE

Magnification

Align Telescope Reticle  Magnification.png

Alignment Collimator Type FK-MWO Image 800x533_edited.jpg

ALIGNMENT INSTRUMENTS

Alignment Collimator



An alignment collimator allows the image of the collimator reticle to be projected precisely along a reference line to different target distances.  The real image of the reticle appears rotated by 180°.

Art No.                Description

231 501                   FK 300/40

ALIGNMENT COLLIMATOR

Notes On Ordering



When placing an order please note the following:

One reticle and a LED illumination are included in the delivery. Please specify the reticle type when ordering!

ALIGNMENT INSTRUMENTS

Technical Data



Focusing range:                  0 - Infinity

Accuracy of Line Sight*:   10 µm

Focal Length:                      80 mm (at 0 m) to 289 mm (Infinity)

Clear Aperture:                  26 mm

*The accuracy of the line of sight denotes the deviation to a straight line measured in the image plane.

RETICLE IMAGE

Magnification

0.5 m         5.8x ±5%

1.0 m         8.2x ±5%

2.0 m         12.6x ±5%

5.0 m         24.0x ±5%

10.0 m       42.0x ±5%

15.0 m       61.0x ±5%

20.0 m       77.0x ±5%

ALIGNMENT INSTRUMENTS

Alignment Telescopes



Alignment Telescopes serve to establish an accurate line of sight to targets at different differences and determine the deviation of the targets with respect to the reference line.

Alignment Telescopes Overview-MWO Slider.png

Click on above buttons to view more information.

ALIGNMENT TELESCOPES

Notes On Ordering



When placing an order please note the following:

One reticle and one eyepiece are included in the delivery. Please specify the reticle and the direction of use when ordering! The telescope is equipped with an eyepiece f=14.7 mm but can be equipped with eyepieces f=25 mm or f=10 mm on request.

ALIGNMENT INSTRUMENTS

Technical Data



Focusing range:                 0 - Infinity

Accuracy of Line Sight*:  10 µm

Focal Length:                     80 mm (at 0 m) to 289 mm (Infinity)

Clear Aperture:                 26 mm

*The accuracy of the line of sight denotes the deviation to a straight line measured in the image plane.

RETICLE IMAGE

Magnification

0.5 m      5.8x ±5%

1.0 m      8.2x ±5%

2.0 m      12.6x ±5%

5.0 m      24.0x ±5%

10.0 m    42.0x ±5%

15.0 m    61.0x ±5%

20.0 m    77.0x ±5%

ALIGNMENT INSTRUMENTS

Alignment Telescopes with Straight Viewing - FFG



An alignment telescope with straight viewing has the user's line of sight co-linear with the objective axis. The image of the target appears in the eyepiece focal plane laterally and vertically reverted. These alignment telescopes are preferably used in horizontal direction, where the eyepiece is at eye level.

Art. No.           Description

231 701        FFG 300/40/14.7

Alignment Telescope Type FFG-MWO Image 800x533_edited.jpg
Alignment Telescope Type FFR-MWO Image 800x533_edited.jpg

ALIGNMENT INSTRUMENTS

Alignment Telescopes with

90° Viewing - FFR



An alignment telescope with 90°-viewing has the user´s line of sight at 90° to the objective axis. By a special deflection optic the target image appears in the eyepiece focal plane upright and right-away around.
These alignment telescopes are preferably used down-looking or on optical tables where a straight viewing is not feasible.

Art. No.           Description

231 702          FFR 300/40/14.7

ALIGNMENT INSTRUMENTS

Alignment Telescopes with

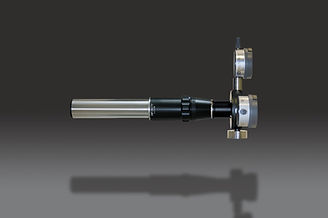

Straight Viewing & Digital

Double Microscope - FFG MDD



An alignment telescope with digital double micrometer enables to measure the target image displacement in the eyepiece image plane. If the target distance is known, the target displacement can be calculated.

Art. No.           Description

231 711         FFG 300/40/14.7 MDD

Alignment Telescope Type FFG-MD-MWO Image 800x533_edited.jpg






ALIGNMENT INSTRUMENTS

Alignment Autocollimators



Alignment autocollimators combine the feature of the alignment collimators and telescopes.  They offer the additional possibility of measuring the tilting angle of the target with respect to the reference line.

Alignment Autocollimators Overview-MWO Slider-1000x500.png

Click on above buttons to view more information.

ALIGNMENT Autocollimators

Notes On Ordering



When placing an order please note the following:

One reticle, one eyepiece and a LED illumination are included in the delivery. Please specify the reticle and the direction of use when ordering! The autocollimator is equipped with an eyepiece f=14.7 mm but can be equipped with eyepieces f=25 mm or f=10 mm on request

ALIGNMENT INSTRUMENTS

Technical Data



Focusing range:                0 - Infinity

Accuracy of Line Sight*:  10 µm

Focal Length:                     80 mm (at 0 m) to 289 mm (Infinity)

Clear Aperture:                 26 mm

*The accuracy of the line of sight denotes the deviation to a straight line measured in the image plane.

RETICLE IMAGE

Magnification

0.5 m      5.8x ±5%

1.0 m      8.2x ±5%

2.0 m      12.6x ±5%

5.0 m      24.0x ±5%

10.0 m    42.0x ±5%

15.0 m    61.0x ±5%

20.0 m    77.0x ±5%

ALIGNMENT INSTRUMENTS

Alignment Autocollimator with Straight Viewing - FAKG



An alignment autocollimator with straight viewing has the user´s line of sight co-linear with the objective axis. The image of the target appears in the eyepiece focal plane laterally and vertically reverted. These alignment autocollimators are preferably used in horizontal direction, where the eyepiece is at eye level.

Art. No.           Description

231 901         FAKG 300/40/14.7

Alignment Autocollimator Type FAKG-MWO Image 800x533.png
Alignment Autocollimator Type FAKR-MWO Image 800x533.png

ALIGNMENT INSTRUMENTS

Alignment Autocollimators with

90° Viewing - FAKR



An alignment autocollimators with 90°-viewing has the user´s line of sight at 90° to the objective axis. The target image appears in the eyepiece focal plane upright but laterally reverted.
These alignment autocollimators are preferably used down-looking or on optical tables where a straight viewing is not feasible.

Art. No.           Description

231 902           FAKR 300/40/14.7

ALIGNMENT INSTRUMENTS

Alignment Autocollimator with

Straight Viewing & Digital

Double Microscope - FAKG MDD



An alignment autocollimator with digital double micrometer enables to measure the target image displacement in the eyepiece image plane. If the target distance is known, the target displacement can be calculated. Additionally, the tilting angle of the target with respect to the line of sight can also be measured.

Art. No.           Description

231 911        FAKG 300/40/14.7 MDD

Alignment Autocollimator Type FAKG-MD-MWO Image 800x533.png




ALIGNMENT INSTRUMENTS

Recommended Accessories

Vermont Photonics offers all of the MÖLLER-WEDEL OPTICAL GmbH alignment accessories providing a perfect match for your application or measurement tasks with our alignment instruments.



To learn more about these components, click on one of the four buttons below.

We also recommend contacting us to discuss your specific applications.

Overview Lightsources-MWO Image 800x533.png
Illuminations

Alignment Instruments Brochures & Spec Sheets

Click on the PDF icons to the right for more information on Alignment Instruments.
