Interferometers



Interferometers are an indispensable measurement tool in optical production and quality control.

Interferometers are used for a wide variety of applications. Examples are testing of flatness and sphericity of optical surfaces, radius measurement and the testing of the wavefront of optical systems. Möller-Wedel interferometers are available in many sizes and setup combinations. View the interferometer catalog for information on possible setup combinations and other technical specifications.


INTERFEROMETERS

Interferometer VI-Direct



The sixth generation of Fizeau Interferometers offers a range of objective tubes with test diameters from 10mm up to 150mm with the Optical Expansion System.  It provides the ability to use in vertical, horizontal and oblique directions making it extremely versatile for use in customer specific applications and a cost effective alternative to conventional interferometers.

Overview_Interferometers_direct MWO Image 800x533.png

INTERFEROMETER VI-DIRECT

Technical Design



Due to the modular design of the interferometer VI-direct, the Fizeau interferometer can be adapted to your specific requirements with different expanding optics (objective tubes). The compact design of the interferometer allows integration into your measurement setup. Depending on the measurement task, the system can be supplied with a non-stabilized, a stabilized He-Ne laser or a laser diode.

Overview Interferometer VI direct combinations MWO Grafic 800x533.png

INTERFEROMETER VI-DIRECT

Typical Applications



Here are some examples for typical applications for the Interferometer VI direct product line:

  • flatness measurement of surfaces

  • wave-front and wedge angle measurement of plane elements

  • measurement of sphericity of lenses and mechanical parts

  • radius measurement of lenses and mechanical parts

  • wave-front measurement of lenses and imaging systems

  • angle measurement of 90°-prisms and corner cubes

Interferometer VI Application Wave-Front Measurement of Lenses and Imaging Systems MWO Gra
Interferometer VI Application Measurement of Surfaces MWO Grafic 800x533.png

TYPICAL APPLICATIONS

Flatness Measurements of Surfaces



This set-up is used for the measurement of surface flatness of plane elements such as mirrors, prisms and windows. For this set-up a transmission flat, a mount for the specimen (e.g. a self-centering holder) and a 2-axes adjustable mount are required.

TYPICAL APPLICATIONS

Wave-Front and Wedge Angle Measurement of Plane Elements



This set-up is used for the measurement of the wave-front deviation of plane elements and for wedge angle measurements. For this set-up two transmission flats, possibly a mount for the specimen (e.g. a self centering holder) and one or two 2-axes adjustable mounts are required.

Interferometer VI Application Wave-Front and Wedge Angle Measurement MWO Grafic 800x533_ed
Interferometer VI Application Measurement of Sphericity of Lenses and Mechanical Parts MWO

TYPICAL APPLICATIONS

Measurement of Sphericity of Lenses and Mechanical Parts



This Set-up allows the measurement of the deviation from sphericity of lenses and spherical parts. For this set-up a corresponding transmission sphere, a mount for the specimen (e.g. self-centering holder) and a 4-axes adjustable mount and a rail or radius measurement unit are required.

TYPICAL APPLICATIONS

Radius Measurement of Lenses and Mechanical Parts



This set-up allows the measurement of radius of curvature of lenses and spherical mechanical parts. For this set-up a corresponding transmission sphere, a mount for the specimen (e.g. self-centering holder) and a 4-axes adjustable mount and a radius measurement unit are required.

Interferometer VI Application Radius Measurement of Lenses and Mechanical Parts MWO Grafic
Interferometer VI Application Wave-Front Measurement of Lenses and Imaging Systems MWO Gra

TYPICAL APPLICATIONS

Wave-Front Measurement of Lenses and Imaging Systems



This set-up is used for the measurement of the wave-front deviation of lenses and imaging systems. For this set-up a transmission flat, a corresponding transmission sphere, a mount for the specimen (e.g. self-centering holder), two 4-axes adjustable mount and a rail or radius measurement unit are required.

TYPICAL APPLICATIONS

Angle Measurement of 90°-Prisms and Corner Cubes



This set-up allows the measurement of the angular error of 90°-prisms and triple mirrors. For this set-up a transmission flat, a mount for the specimen (e.g. self-centering holder) and a 2-axes adjustable mount or tilting table are required.

Interferometer VI Application Angle Measurement of 90°-Prisms and Corner Cubes MWO Grafic


INTERFEROMETER VI-DIRECT

Clear Aperture: 10, 16, 28 mm



The Interferometer VI-direct with clear aperture 10, 16, 28 mm allow testing optics with diameters between 3 and 28 mm. Depending on your application you can choose your ideal test field diameter range and also between a He-Ne-Lasers with 632.8 nm wavelength (stabilized or non-stabilized) or a stabilized laser diode with 635 nm wavelength.

Interferometer_VI_direct_10 MWO Slider 1000x500.png

Features:



  • Direct connection to PC via USB-port, no frame grabber required

  • Digital camera with high resolution (1600x1200 Pixel)

  • Insensitive to vibrations due to short exposure time

  • Wide range of optical and mechanical accessories

  • Usable in vertical, horizontal, or under oblique directions. This makes the instrument extreme versatile for use in customer specific applications

  • Due to its compact design the interferometers are well suitable for the integration in application specific workstations

  • Visual or optionally software-supported evaluation with INTOMATIK-S or INTOMATIK-N

  • Light source: fiber coupled, stabilized or non-stabilized He-Ne-laser (λ=632.8 nm) or a stabilized laser diode (λ=635 nm)

Technical Data

Interferometer VI-Direct 10 16 28_edited.png

INTERFEROMETER VI-DIRECT

Recommended Accessories for

Clear Aperture 10, 16 & 28mm



Click on the links for more information on these recommended accessories for the Interferometer VI-Direct.

LASERS

TRANSMISSION REFERENCE FLAT D30 (λ/30)

TRANSMISSION SPHERE M36 X 0.75

ADAPTER M36 x 0.75

TRIPOD STAND D40

VERTICAL STAND D40

INTERFEROMETER VI-DIRECT

Clear Aperture: 50 mm



The Interferometer VI-direct with clear aperture 50 mm allows the testing of optics with diameters between 12 and 50 mm. Depending on your application you can choose between a He-Ne-lasers with 632.8 nm wavelength (stabilized or non-stabilized) or a stabilized laser diode with 635 nm wavelength.

Interferometer-VI-direct-50 MWO Slider 1000x500.png

Features:



  • Direct connection to PC via USB-port, no frame grabber required

  • Digital camera with high resolution (1600x1200 Pixel)

  • Insensitive to vibrations due to short exposure time

  • Wide range of optical and mechanical accessories

  • Usable in vertical, horizontal, or oblique directions. This makes the instrument extreme versatile for use in customer specific applications

  • Due to its compact design the interferometers are well suitable for the integration in application specific workstations

  • Visual or optionally software-supported evaluation with INTOMATIK-S or INTOMATIK-N

  • Light source: fiber coupled, stabilized or non-stabilized He-Ne-laser (λ=632.8 nm) or stabilized laser diode (λ=635 nm)

Interferometer VI Direct 50mm specs_edited.png

Technical Data

INTERFEROMETER VI-DIRECT

Recommended Accessories for

Clear Aperture 50mm



Click on the links for more information on these recommended accessories for the Interferometer VI-Direct.

LASERS

TRANSMISSION REFERENCE FLAT D50 (λ/30)

TRANSMISSION SPHERE M60 X 1.00

ADAPTER M60 x 1.0

TRIPOD STAND D65

VERTICAL STAND D65

INTERFEROMETER VI-DIRECT

Clear Aperture: 100mm



The Interferometer VI-direct with clear aperture 100 mm allows the testing of optics with diameters between 25 and 100 mm, but can also be expand to 150 mm (Optical Expansion System). Depending on your application you can choose between He-Ne-Lasers with 632.8 nm wavelength (Stabilized or non-stabilized) or a laser diode with 635 nm wavelength.

Interferometer_VI_direct_100 MWO Slider 1000x500.png

Features:



  • Direct connection to PC via USB-port, no frame grabber required

  • Digital camera with high resolution (1600x1200 Pixel)

  • Insensitive to vibrations due to short exposure time

  • Wide range of optical and mechanical accessories

  • Usable in vertical, horizontal, or under oblique directions. This makes the instrument extreme versatile for use in customer specific applications

  • Due to its compact design the interferometers are well suitable for the integration in application specific workstations

  • Visual or optionally software-supported evaluation with INTOMATIK-S or INTOMATIK-N

  • Light source: fiber coupled, stabilized or non-stabilized He-Ne-laser (λ=632.8 nm) or stabilized laser diode (λ=635 nm)

Technical Data

Interferometer VI Direct 100mm_edited.png

INTERFEROMETER VI-DIRECT

Recommended Accessories for

Clear Aperture 100mm



Click on the links for more information on these recommended accessories for the Interferometer VI-Direct.

LASERS

TRANSMISSION REFERENCE FLAT D100 & D150

TRANSMISSION SPHERE SYSTEM

REFERENCE OBJECTIVE W/ BAYONET

CLAMP FIXTURE  D128

VERTICAL STAND D128





INTERFEROMETERS

Micro-Interferometer VI-Direct



The Micro-Interferometer VI-Direct extends the range of flatness testing to the domain of the smallest diameters.  The Fizeau-type interferometer is able to measure the surface flatness of optical parts with a diameter of between approximately 0.8mm to 3.6mm.  The cost effective Micro-Interferometer VI-Direct can be used for testing of optical parts like micro-prisms, laser crystals, fiber endings and many other similar components.

Micro-Interferometer-MWO Slider 1000x500.png

Features:



  • Direct connection to PC via USB-port, no frame grabber required

  • Digital camera with high resolution (1600x1200 Pixel)

  • Insensitive to vibrations due to short exposure time

  • Wide range of optical and mechanical accessories

  • Usable in vertical, horizontal, or under oblique directions. This makes the instrument extreme versatile for use in customer specific applications

  • Due to its compact design the interferometers are well suitable for the integration in application specific workstations

  • Visual or optionally software-supported evaluation with INTOMATIK-S

  • Light source: fiber coupled, stabilized or non-stabilized He-Ne-laser (λ=632.8 nm) or stabilized laser diode (λ=635 nm)

Technical Data

Micro Interfer VI Direct Tech_edited.png

INTERFEROMETER VI-DIRECT

Recommended Accessories for

Micro-Interferometer VI-Direct



Click on the links for more information on these recommended accessories for the Interferometer VI-Direct.

LASERS

TRANSMISSION REFERENCE FLAT D30 (λ/30)

TRIPOD STAND D40

VERTICAL STAND D40

SOFTWARE INTOMATIK-S

VIDEO MINI PC



INTERFEROMETERS

Interferometer VI-Direct PUL & SUL



The two measuring stations for testing flat surfaces, Interferometer VI-Direct 50 PUL and spherical surfaces, Interferometer VI-Direct 28 SUL, enable fast and uncomplicated quality control in series production.

Overview PUL+SUL Set-Up MWO Slider 1000x500_edited.png

INTERFEROMETER PUL & SUL

Interferometer VI-direct 50 PUL



The plane surface Interferometer VI-direct 50 PUL allows the fast testing of uncoated and mirrored plane-surfaces. Due to its special layout the interferogram can directly be evaluated with the optional INTOMATIK-S Software after inserting the specimen. A re-adjustment is not necessary.

Features:



  • Direct connection to a Video-Mini-PC via USB-port

  • Digital camera with high resolution (1600x1200 Pixel)

  • Insensitive to vibrations due to short exposure time

  • Sample support with tilting function

  • Set of aperture stops

  • Finder mode for quick pre-alignment

  • Easy to use

  • Direct display of interferogram without re-alignment

  • Visual or optionally software-supported evaluation with INTOMATIK-S

  • Light source: fiber coupled, stabilized or non-stabilized He-Ne-laser (λ=632.8 nm) or stabilized laser diode (λ=635 nm)

INTERFEROMETER VI-DIRECT 50 PUL

Recommended Accessories



Click on the links for more information on these recommended accessories for the Interferometer VI-Direct.

LASERS

SOFTWARE INTOMATIK-S

VIDEO MINI PC


Technical Data

Interfer VI-Dir 50 PUL_edited.png

INTERFEROMETER PUL & SUL

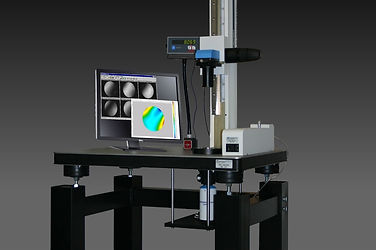

Interferometer VI-direct 28 SUL



The measuring station Interferometer VI-direct 28 SUL enables the fast testing of form or radii deviation of spherical surfaces. Optionally the INTOMATIK-S Software can be used for evaluation of the interferogramms.

Features:



  • Direct connection to a Video-Mini-PC via USB-port

  • Digital camera with high resolution (1600x1200 Pixel)

  • Insensitive to vibrations due to short exposure time

  • Display unit for radii measurement

  • Set of aperture stops

  • Sample support with XY-translation

  • Finder mode for quick pre-alignment

  • Easy to use

  • Visual or optionally software-supported evaluation with INTOMATIK-S

  • Light source: fiber coupled, stabilized or non-stabilized He-Ne-laser (λ=632.8 nm) or stabilized laser diode (λ=635 nm)

INTERFEROMETER VI-DIRECT 28 SUL

Recommended Accessories



Click on the links for more information on these recommended accessories for the Interferometer VI-Direct.

LASERS

TRANSMISSION SPHERE M36 X 0.75

SOFTWARE INTOMATIK-S

VIDEO MINI PC

Interferometer VI direct 28 SUL-MWO Image 800x533_edited.jpg

Technical Data

Interfer VI-Dir 28 SUL specs_edited.png



Interferometers VI-Direct
Brochures & Spec Sheets


Click on the PDF icons to the right for more information on Interferometers.
pdf icon 3_edited_edited.png

Interferometer VI-Direct all versions
