COLLIMATORS

Basic: Type K

The simplest version of a collimator is a collimator with fixed focus setting and one collimator reticle. We offer collimators with different focal lengths and diameters.

Collimators-Type K-MWO-Image-800x533.png

TYPE K

Notes on ordering:



In case of order please note the following:

One reticle and bulb illumination (6V/5W, without transformer) are included in the delivery.


Transformer or other illuminations (LED- or light conductive fiber illumination) must be ordered separately. Please specify the reticle type when ordering!

If not specified otherwise, the collimator is adjusted to infinity at 546 nm wavelength. Adjustment to other distances or wavelengths is also possible on demand. It is possible to specify the collimator either with the article no. or/and with the article description.

The nomenclature of the collimators is shown in the right hand graphic.

Collimator-Typ K-Example-MWO-Grafic-800x533.png
Collimators Type K small-size-Aperture-MWO-Image-800x533.png

TYPE K

Small Size Apertures

Note: The technical dimensions of each collimator can be opened by clicking on the description and viewed, downloaded and printed as a PDF.

TYPE K

Mid-Size Apertures

Note: The technical dimensions of each collimator can be opened by clicking on the description and viewed, downloaded and printed as a PDF.

collimators mid-size apertures.png

*Note: K500T/65 is compact design.

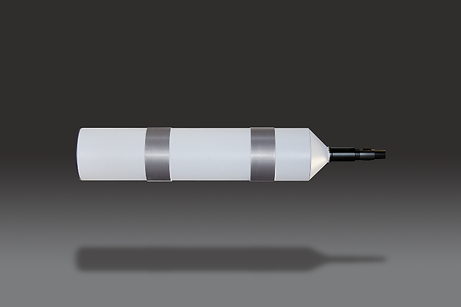

Collimators Type K large-size-Aperture-MWO-Image-800x533.png
Collimators Type K mid-size-Aperture-MWO-Image-800x533.png

TYPE K

Large Size Apertures

Note: The technical dimensions of each collimator can be opened by clicking on the description and viewed, downloaded and printed as a PDF.

Collimators specs large apertures.png



Collimator Brochure and Specs:

TYPE K

Click PDF button to view, download and print.

PDF icon.jpg

Basic Collimator Overview

PDF icon.jpg

Collimator Introduction
